    Nanofluid Flow in a Wave Sine Channel, Heat Transfer Analysis, ANSYS Fluent CFD Simulation Training

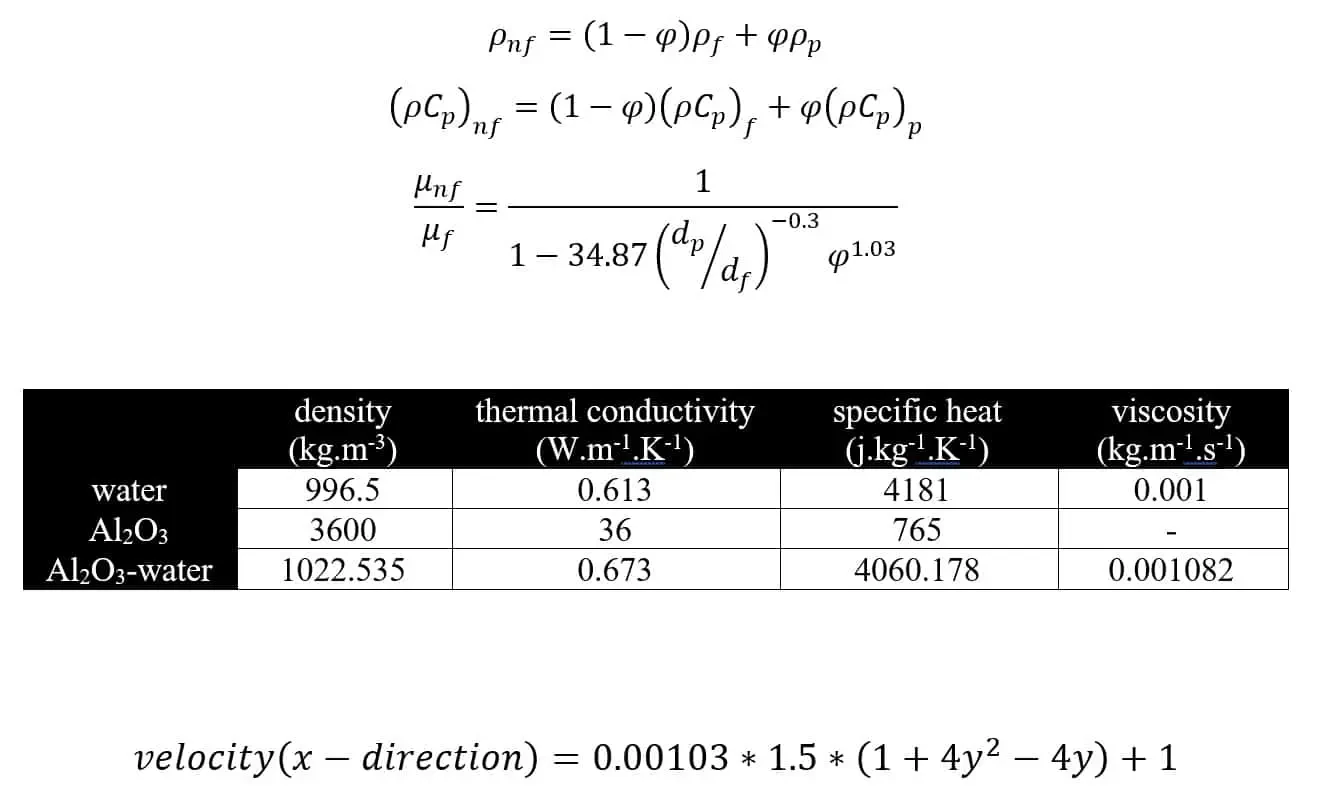

    The present problem simulates the wave motion of a nanofluid within a sinusoidal channel using ANSYS Fluent software. The nanofluid current in the channel is defined as Al2O3-water; So it has nanoparticles with a volume fraction of 1%. According to the following equations, the thermophysical properties of the nanofluid material are obtained, and the amount of thermophysical properties of water fluid and nanoparticles is defined according to the data in the table below. The nanofluid flow enters the channel at a temperature of 300 K; due to the wavy structure of the geometry, the value of the horizontal velocity of the input current is a function of the vertical direction. This horizontal flow velocity function is defined as follows and is compiled into the software as a UDF.

    Also, in terms of thermal boundary conditions, the lower wall of the channel has a constant heat flux equal to 320 W.m-2, and the upper wall of the channel has a constant temperature equal to 320 K.

    nanofluid

    Geometry & Mesh

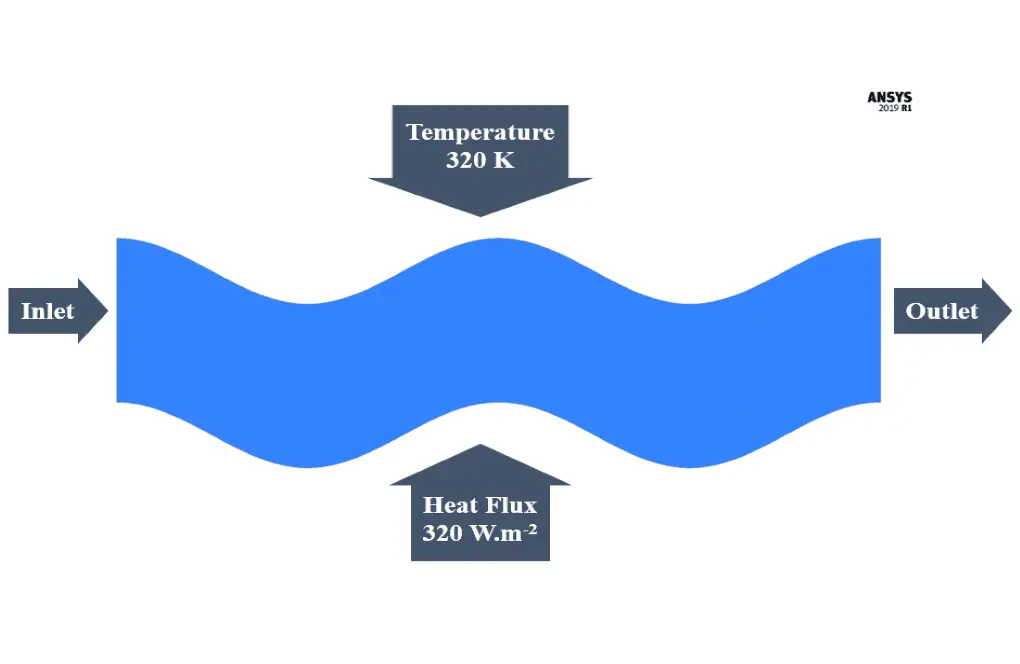

    The current model is designed in two dimensions using Design Modeler software. The present model is a two-dimensional channel with sinusoidal walls. The canal length is equal to 4 m, and its width is equal to 1 m. So that its wavelength is equal to 2 m, and the height of each peak or bottom is equal to 0.4 m.

    nanofluid

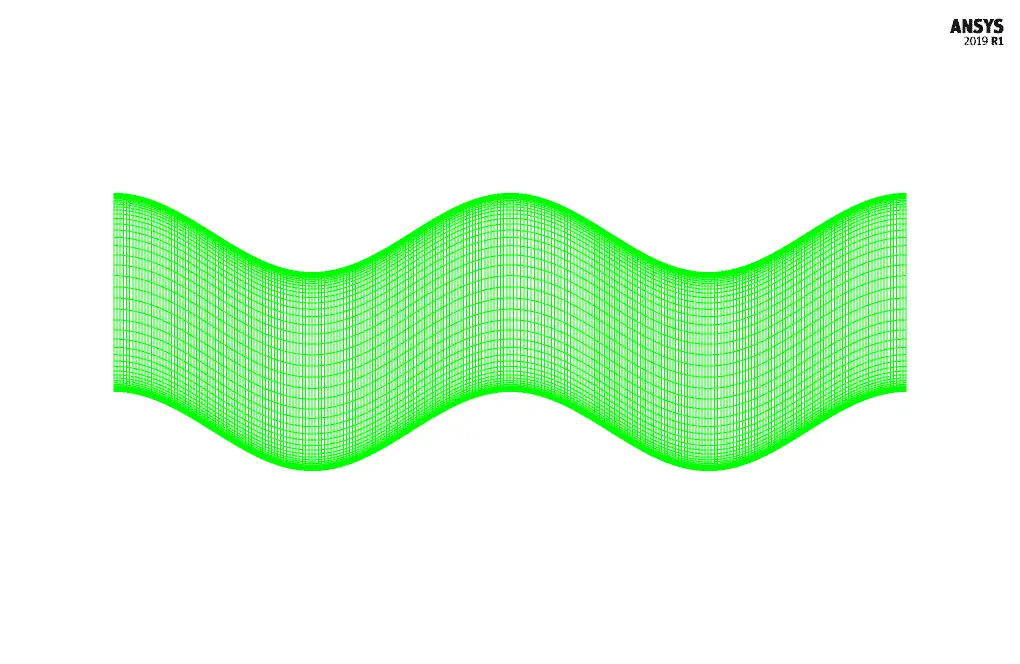

    We carry out the model's meshing using ANSYS Meshing software. The mesh type is structured. The element number is 21,300. The following figure shows the mesh.

    nanofluid

    Nanofluid CFD Simulation

    We consider several assumptions to simulate the present model:

    • We perform a pressure-based solver.
    • The simulation is steady.
    • The gravity effect on the fluid is ignored.

    The following table represents a summary of the defining steps of the problem and its solution:

    Models
    ViscousLaminar
    EnergyOn
    Boundary conditions
    InletVelocity Inlet
    velocity magnitudeUDF
    temperature300 K
    OutletPressure Outlet
    gauge pressure0 pascal
    Up WallWall
    wall motionstationary wall
    Temperature320 K
    Down WallWall
    wall motionstationary wall
    Heat Flux320 W.m-2
    Methods
    Pressure-Velocity CouplingCoupled
    pressuresecond order
    momentumsecond-order upwind
    energysecond-order upwind
    Initialization
    Initialization methodsStandard
    gauge pressure0 pascal
    x-velocity0.0015 m.s-1
    y-velocity0 m.s-1
    temperature300 K

    Nanofluid Results

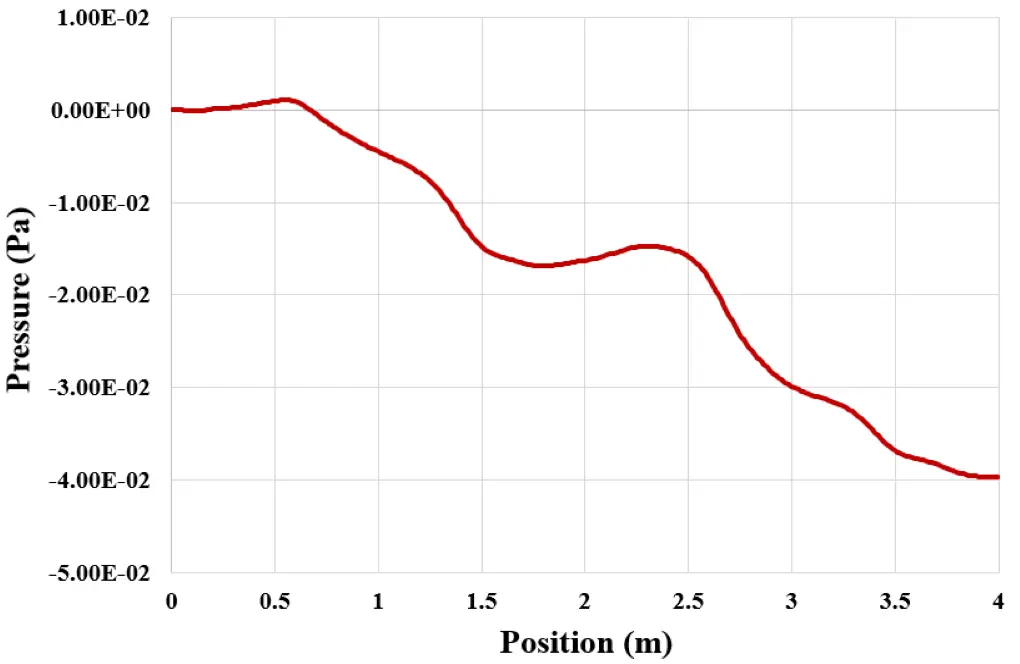

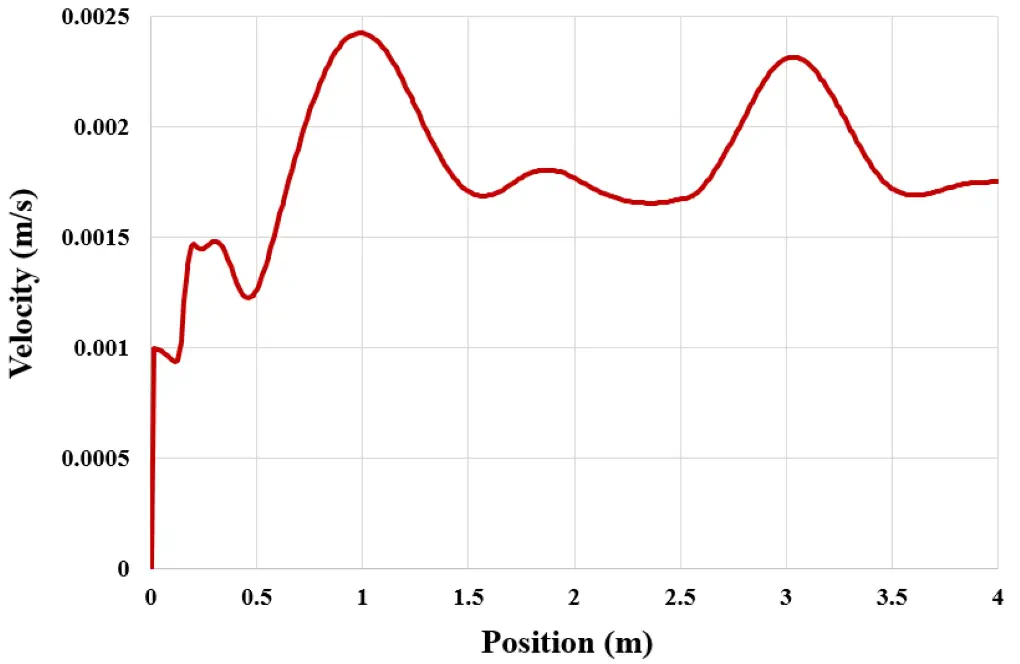

    At the end of the solution process, two-dimensional contours related to temperature, pressure, and velocity are obtained. The graph of pressure and velocity changes along a hypothetical horizontal line passing through the middle of the channel is also obtained.
