Project Description

The present problem simulates blood flow within a clogged vessel using ANSYS Fluent software. Fluids are divided into two categories according to their viscosity: Newtonian and non-Newton fluids. Viscosity of a fluid is a parameter that indicates the resistance of that fluid to flow. Newtonian fluids are fluids that follow Newton's law of viscosity (shear stress in a Newtonian fluid changes linearly with strain rate) and also their viscosity depends only on the temperature and pressure of the fluid and by applying force to them in constant temperature and pressure, their viscosity does not change.

Non-Newtonian fluids, on the other hand, are fluids that do not follow Newton's law of fluids, and their viscosity changes with the application of force. In this simulation, blood with a density of 1050 kg.m-3 is used as a fluid that is considered a non-Newtonian fluid. Therefore, the Carreau equation model is used to define the fluid viscosity in the software. In this model, the viscosity value at zero shear stress is defined as 0.022 kg.m-1.s-1 and the viscosity at initial shear stress is defined as 0.0022 kg.m-1.s-1. Blood flow enters the vessel at a rate equivalent to 0.25 m.s-1 and exits at a pressure equivalent to atmospheric pressure. The equation of the Carreau model is defined as follows:

Clogged Vessel Geometry & Mesh

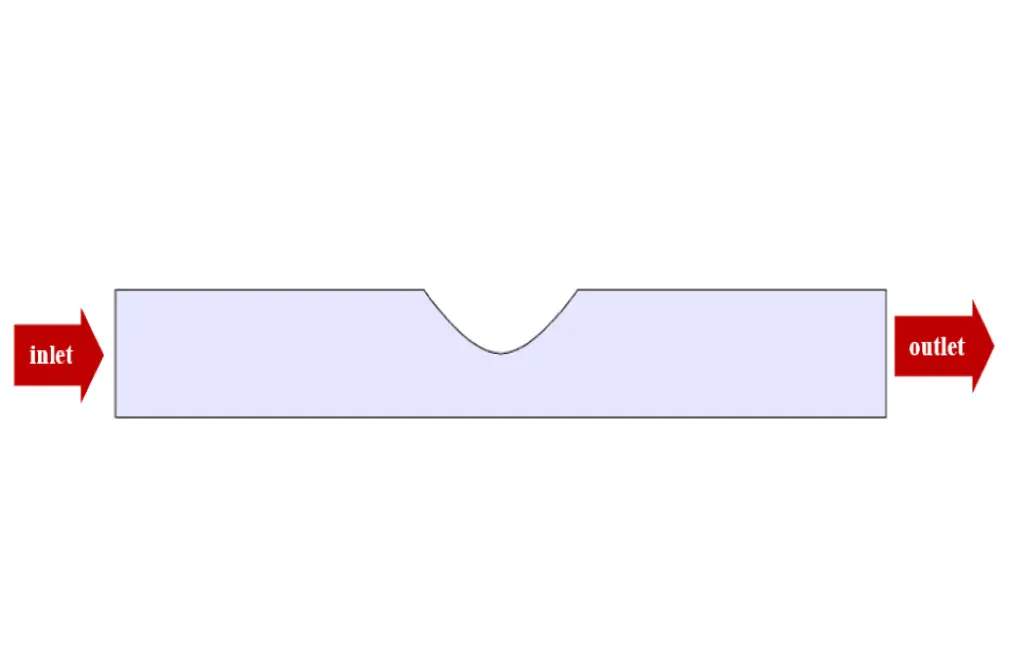

The present model is designed in two dimensions using Design Modeler software. The model is designed as a symmetrical part of a three-dimensional model that includes an inlet and an outlet and a recessed wall.

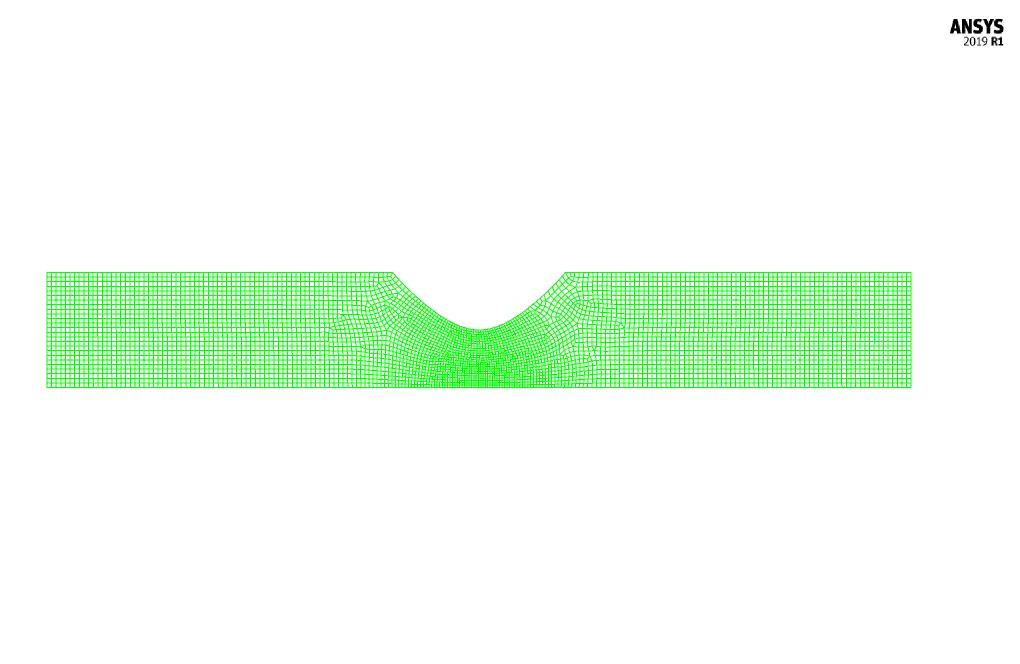

The meshing of the model has been done using ANSYS Meshing software and the mesh type is unstructured. The element number is 5302. The following figure shows the mesh.

Non-Newtonian Flow CFD Simulation

To simulate the present model, we consider several assumptions:

• We perform a pressure-based solver.
• The simulation is unsteady.
• The gravity effect on the fluid is equal to -9.81 m.s-2 along the Y-axis.

A summary of the defining steps of the problem and its solution is given in the following table:

Results

At the end of the solution process, we obtain two-dimensional contours related to pressure and velocity as well as diagrams of changes in pressure and velocity along the central axis of the model and diagrams of shear stress changes in the wall along the outer surface of the vessel wall.
