Water Droplet Falling Project Description
In this project, numerical simulation of water from falling on resident water has been done using Ansys Fluent software. The goal of this project is to simulate raindrop impact on resident water. The Eulerian multiphase model has been used. The drop has an initial speed of zero, and gravity force pulls it down. gravity considered as -9.81 m/s-2 in y-axis.
Geometry & Mesh

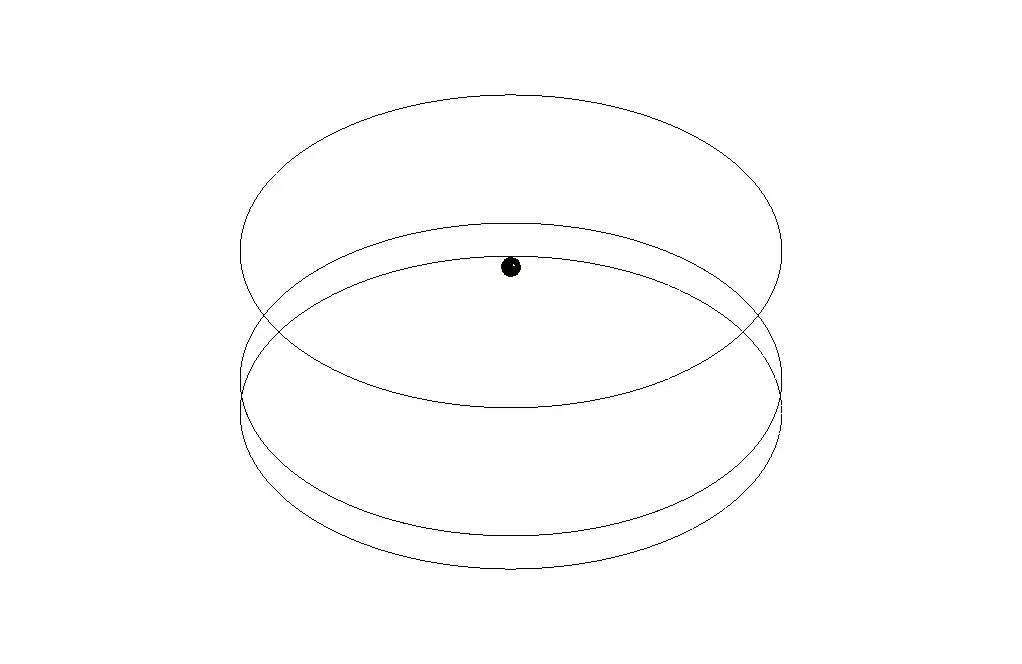

The 3-D geometry of the present model is carried out using Design Modeler software. The geometry consists of three sections. The lower section is resident water. The upper section contains the outlet, and the upper section is air; the drop is considered a sphere of water with a physical diameter.

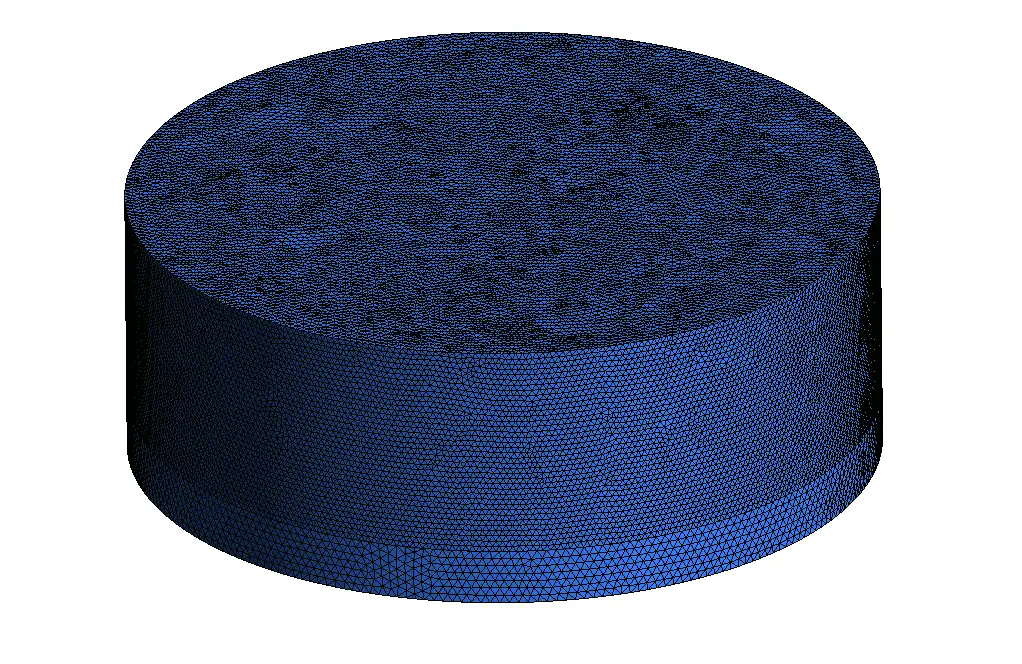

The meshing of this present model has been generated by Ansys Meshing software. The mesh grid is unstructured with no element quality lower than 0.53, and the total cell number is 3116593. the figure below shows an overview of the performed mesh.
Water Droplet Falling CFD Simulation
To simulate the present model, several assumptions are considered, which are:
- The solver is pressure-based and transient.
- Simulation has only examined fluid behavior; in other words, heat transfer simulation has not been performed.
- The effect of gravity on the flow is considered to be 9.81 m.s-2 and along with the y-axis in the present model.
The following is a summary of the steps for defining the problem and its solution
| Models | ||
| K-omega | Viscous model | |
| SST | k-omega model | |
| shear flow corrections | k-omega options | |
| air | primary phase | |
| water | secondary phase | |
| explicit | formulation | |
| Boundary conditions | ||
| intersection | Interface | |
| 0 | initial gauge pressure | Mixture |
| Air domain | Coupled wall | Water |
| 1 | volume fraction | |
| Pressure outlet | outlet | |
| 1 | backflow volume fraction | Air |
| 0 | backflow volume fraction | Water |
| wall | Wall | |
| stationary wall | wall motion | |
| Solution Methods | ||
| Phase coupled | pressure-velocity coupling | |
| PRESTO! | pressure | |
| first-order upwind | momentum | |
| first-order upwind | specific dissipation rate | |
| first-order upwind | volume fraction | |
| Initialization | ||
| standard | initialization method | |
| 0 | water velocity (0,y,0) | |
| 0 m/s | air velocity (x,y,z) | |
| 1 | the secondary phase volume fraction | |
Water Droplet Falling Results
At the end of the solution process, two-dimensional and three-dimensional velocity, air and water volume fraction, and animation are obtained. This 3-D simulation has been performed to see the motion of water drop and gravity effect on two mixed fluid combinations. In this simulation, you see water drop has been pulled down with gravity force and impacts on the water surface.
You can obtain Geometry & Mesh file and a comprehensive Training Movie which presents how to solve the problem and extract all desired results.
